如何通过nginx负载均衡跳转https

web端拷贝证书与密钥

   scp -rp -P52113 /application/nginx/conf/key 10.0.0.5:/application/nginx/conf/

在nginx负载均衡服务端配置

vim /application/nginx/conf/nginx.conf

  worker_processes 2;  error_log logs/error.log;  events {    worker_connections 65535;  }  http {    include    mime.types;    default_type application/octet-stream;    sendfile    on;    keepalive_timeout 65;          upstream server_pools {      server 10.0.0.200:443 weight=1 max_fails=3 fail_timeout=10;      #server 10.0.0.8:443 weight=1 max_fails=3 fail_timeout=10;      #server 10.0.0.9:443 weight=1 max_fails=3 fail_timeout=10;    }       server {      listen    80;      server_name localhost;      rewrite ^(.*)$ https://$host$1 permanent;    }    server {      listen 10.0.0.5:443;      server_name www.abc.com;         #开启 https 注意要添加在server区块 不能在http区块中放置      ssl on;      ssl_certificate /application/nginx/conf/key/server.crt;      ssl_certificate_key /application/nginx/conf/key/server.key;         location / {        proxy_pass https://server_pools;        proxy_set_header Host $host;        proxy_set_header X-Forwarded-For $remote_addr;      }    }  }

#检查nginx负载均衡配置

   /application/nginx/sbin/nginx -t

#重启nginx负载均衡

   /application/nginx/sbin/nginx -s stop
   /application/nginx/sbin/nginx

浏览器访问测试

注意修改hosts对应的是负载均衡的IP地址信息

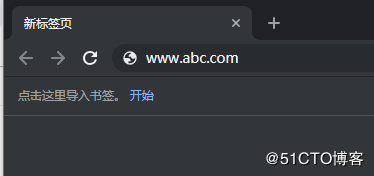

访问测试

如何通过nginx负载均衡跳转https nginx 第1张

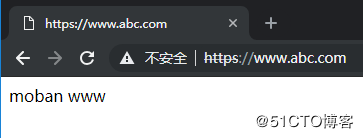

访问结果

如何通过nginx负载均衡跳转https nginx 第2张
