Linux系统中时间的获取和使用

Linux系统时间有两种。

(1)日历时间。该值是自协调世界时(UTC)1970年1月1日00:00:00这个特定时间以来所经过的秒数累计值。基本数据类型用time_t保存。最后通过转换才能得到我们平时所看到的24小时制或者12小时间制的时间。

(2)进程时间。也被称为CPU时间,用以度量进程使用的中央处理器资源。进程时间以时钟滴答计算。

本文将给大家详细介绍关于Linux时间的获取和使用,下面话不多说了,来一起看看详细的介绍吧

获取时间戳

time()

  #include <time.h>  time_t time(time_t *calptr)

  • time返回当前时间的时间戳,也就是从世界时到现在的秒数;
  • time_t实际就是一个uint64_t;
  • calptr不为空时,时间戳也会写入到该指针中;

调用示例:

  #include <time.h>  #include <iostream>  #include <stdlib.h>    using namespace std;    int main()  {  time_t curTime;  curTime = time(NULL);  cout << curTime << endl;  return 0;  }

结果:

返回一串数值,如1533287924

gettimeofday()和clock_gettime()

time函数只能得到秒精度的时间,为了获得更高精度的时间戳,需要其他函数。gettimeofday函数可以获得微秒精度的时间戳,用结构体timeval来保存;clock_gettime函数可以获得纳秒精度的时间戳,用结构体timespec来保存。

  #include <sys/time.h>    int gettimeofday(struct timeval *tp, void *tzp);  因为历史原因tzp的唯一合法值是NULL,因此调用时写入NULL即可。    int clock_gettime(clockid_t clock_id, strcut timespec *tsp);  clock_id有多个选择,当选择为CLOCK_REALTIME时与time的功能相似,但是时间精度更高。

两个函数使用的结构体定义如下:

  struct timeval  {  long tv_sec; /*秒*/  long tv_usec; /*微秒*/  };    struct timespec  {  time_t tv_sec; //秒  long tv_nsec; //纳秒  };

调用示例:

  #include <time.h>  #include <sys/time.h>  #include <iostream>  #include <stdlib.h>    using namespace std;    int main()  {  time_t dwCurTime1;  dwCurTime1 = time(NULL);    struct timeval stCurTime2;  gettimeofday(&stCurTime2, NULL);    struct timespec stCurTime3;  clock_gettime(CLOCK_REALTIME, &stCurTime3);    cout << "Time1: " << dwCurTime1 << "s" << endl;  cout << "Time2: " << stCurTime2.tv_sec << "s, " << stCurTime2.tv_usec << "us" << endl;  cout << "Time3: " << stCurTime3.tv_sec << "s, " << stCurTime3.tv_nsec << "ns" << endl;    return 0;  }

结果:

编译时要在编译命令最后加上-lrt链接Real Time动态库,如
g++ -o time2 test_time_linux_2.cpp -lrt

Time1: 1533289490s
Time2: 1533289490s, 133547us
Time3: 1533289490s, 133550060ns

可视化时间

tm结构体

得到的时间戳不能直观的展示现在的时间,为此需要使用tm结构体来表示成我们日常所见的时间,该结构体定义如下:

  struct tm  {  int tm_sec; /*秒,正常范围0-59, 但允许至61*/  int tm_min; /*分钟,0-59*/  int tm_hour; /*小时, 0-23*/  int tm_mday; /*日,即一个月中的第几天,1-31*/  int tm_mon; /*月, 从一月算起,0-11*/ 1+p->tm_mon;  int tm_year; /*年, 从1900至今已经多少年*/ 1900+ p->tm_year;  int tm_wday; /*星期,一周中的第几天, 从星期日算起,0-6*/  int tm_yday; /*从今年1月1日到目前的天数,范围0-365*/  int tm_isdst; /*日光节约时间的旗标*/  };

time_t转成tm

gmtime 和localtime可以将time_t类型的时间戳转为tm结构体,用法如下:

  struct tm* gmtime(const time_t *timep);  //将time_t表示的时间转换为没有经过时区转换的UTC时间,是一个struct tm结构指针    stuct tm* localtime(const time_t *timep);  //和gmtime功能类似,但是它是经过时区转换的时间,也就是可以转化为北京时间。

固定格式打印时间

得到tm结构体后,可以将其转为字符串格式的日常使用的时间,或者直接从time_t进行转换,分别可以使用以下两个函数达到目的。不过这两个函数只能打印固定格式的时间。

  //这两个函数已经被标记为弃用,尽量使用后面将要介绍的函数  char *asctime(const struct tm* timeptr);  char *ctime(const time_t *timep);

调用示例:

  #include <time.h>  #include <sys/time.h>  #include <iostream>  #include <stdlib.h>    using namespace std;    int main()  {  time_t dwCurTime1;  dwCurTime1 = time(NULL);    struct tm* pTime;  pTime = localtime(&dwCurTime1);    char* strTime1;  char* strTime2;  strTime1 = asctime(pTime);  strTime2 = ctime(&dwCurTime1);    cout << strTime1 << endl;  cout << strTime2 << endl;    return 0;  }

结果:

Fri Aug 3 18:24:29 2018
Fri Aug 3 18:24:29 2018

灵活安全的时间转换函数strftime()

上述两个函数因为可能出现缓冲区溢出的问题而被标记为弃用,因此更加安全的方法是采用strftime方法。

  /*  ** @buf:存储输出的时间  ** @maxsize:缓存区的最大字节长度  ** @format:指定输出时间的格式  ** @tmptr:指向结构体tm的指针  */  size_t strftime(char* buf, size_t maxsize, const char *format, const struct tm *tmptr);

我们可以根据format指向字符串中格式,将timeptr中存储的时间信息按照format指定的形式输出到buf中,最多向缓冲区buf中存放maxsize个字符。该函数返回向buf指向的字符串中放置的字符数。

函数strftime()的操作有些类似于sprintf():识别以百分号(%)开始的格式命令集合,格式化输出结果放在一个字符串中。格式化命令说明串 strDest中各种日期和时间信息的确切表示方法。格式串中的其他字符原样放进串中。格式命令列在下面,它们是区分大小写的。

%a 星期几的简写
%A 星期几的全称
%b 月分的简写
%B 月份的全称
%c 标准的日期的时间串
%C 年份的后两位数字
%d 十进制表示的每月的第几天
%D 月/天/年
%e 在两字符域中,十进制表示的每月的第几天
%F 年-月-日
%g 年份的后两位数字,使用基于周的年
%G 年分,使用基于周的年
%h 简写的月份名
%H 24小时制的小时
%I 12小时制的小时
%j 十进制表示的每年的第几天
%m 十进制表示的月份
%M 十时制表示的分钟数
%n 新行符
%p 本地的AM或PM的等价显示
%r 12小时的时间
%R 显示小时和分钟:hh:mm
%S 十进制的秒数
%t 水平制表符
%T 显示时分秒:hh:mm:ss
%u 每周的第几天,星期一为第一天 (值从0到6,星期一为0)
%U 第年的第几周,把星期日做为第一天(值从0到53)
%V 每年的第几周,使用基于周的年
%w 十进制表示的星期几(值从0到6,星期天为0)
%W 每年的第几周,把星期一做为第一天(值从0到53)
%x 标准的日期串
%X 标准的时间串
%y 不带世纪的十进制年份(值从0到99)
%Y 带世纪部分的十制年份
%z,%Z 时区名称,如果不能得到时区名称则返回空字符。
%% 百分号

调用示例:

  #include <time.h>  #include <sys/time.h>  #include <iostream>  #include <stdlib.h>    using namespace std;    int main()  {  time_t dwCurTime1;  dwCurTime1 = time(NULL);    struct tm* pTime;  pTime = localtime(&dwCurTime1);    char buf[100];    strftime(buf, 100, "time: %r, %a %b %d, %Y", pTime);    cout << buf << endl;    return 0;  }

结果:

time: 08:18:12 PM, Fri Aug 03, 2018

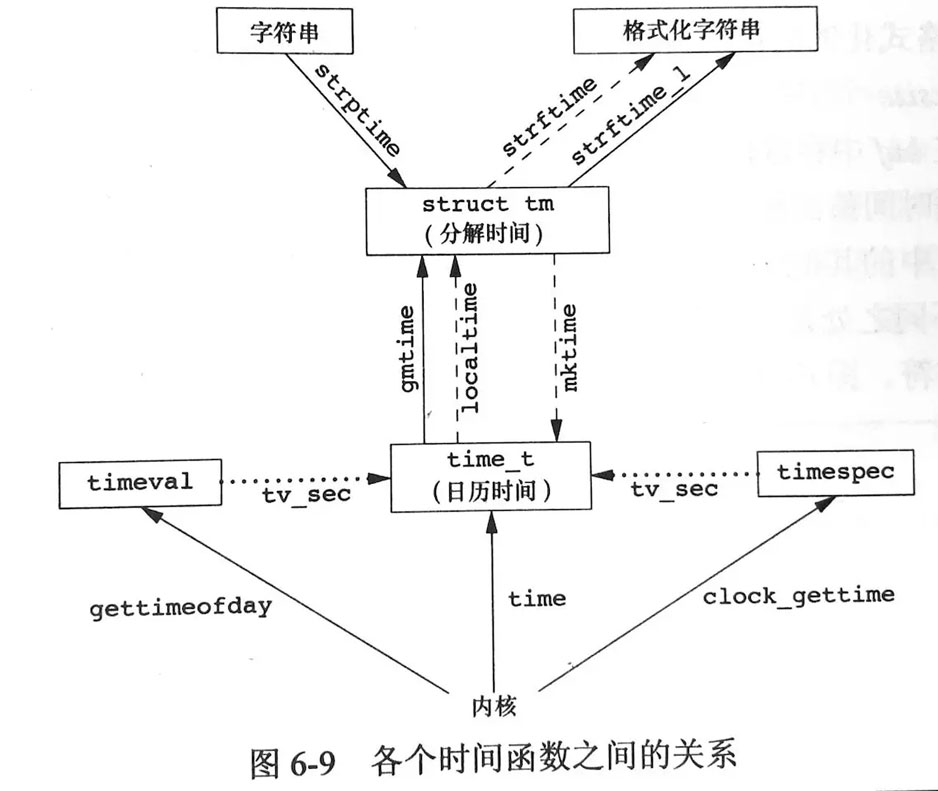

时间函数之间的关系图

Linux系统中时间的获取和使用 Linux 第1张

进程时间

进程时间是进程被创建后使用CPU的时间 ,进程时间被分为以下两个部分:

  • 用户CPU时间:在用户态模式下使用CPU的时间
  • 内核CPU时间:在内核态模式下使用CPU的时间。这是执行内核调用或其他特殊任务所需要的时间。

clock函数

clock函数提供了一个简单的接口用于取得进程时间,它返回一个值描述进程使用的总的CPU时间(包括用户时间和内核时间),该函数定义如下:

  #include <time.h>  clock_t clock(void)  //if error, return -1

clock函数返回值得计量单位是CLOCKS_PER_SEC,将返回值除以这个计量单位就得到了进程时间的秒数

times函数

times函数也是一个进程时间函数,有更加具体的进程时间表示,函数定义如下:

  #include <sys/times.h>  clock_t times(struct tms* buf);    struct tms{  clock_t tms_utime;  clock_t tms_stime;  clock_t tms_cutime;  clock_t tms_cstime;  };

times函数虽然返回类型还是clock_t,但是与clock函数返回值的计量单位不同。times函数的返回值得计量单位要通过sysconf(SC_CLK_TCK)来获得。

Linux系统编程手册上一个完整的使用案例如下:

  #include <time.h>  #include <sys/times.h>  #include <unistd.h>  #include <stdio.h>    static void displayProcessTime(const char* msg)  {  struct tms t;  clock_t clockTime;  static long clockTick = 0;    if (msg != NULL)   {  printf("%sn", msg);  }    if (clockTick == 0)  {  clockTick = sysconf(_SC_CLK_TCK);  if (clockTick < 0) return;  }    clockTime = clock();  printf("clock return %ld CLOCKS_PER_SEC (%.2f seconds)n", (long)clockTime, (double)clockTime/CLOCKS_PER_SEC);    times(&t);  printf("times return user CPU = %.2f; system CPU = %.2fn", (double)t.tms_utime / clockTick, (double)t.tms_stime / clockTick);  }    int main()  {  printf("CLOCKS_PER_SEC = %ld, sysconf(_SC_CLK_TCK) = %ldn", (long)CLOCKS_PER_SEC, sysconf(_SC_CLK_TCK));    displayProcessTime("start:");  for (int i = 0; i < 1000000000; ++i)  {  getpid();  }  printf("n");  displayProcessTime("end:");    return 0;  }

参考

[1] http://www.runoob.com/w3cnote/cpp-time_t.html

[2] Unix高级环境编程(第三版)

[3] Unix系统编程手册
